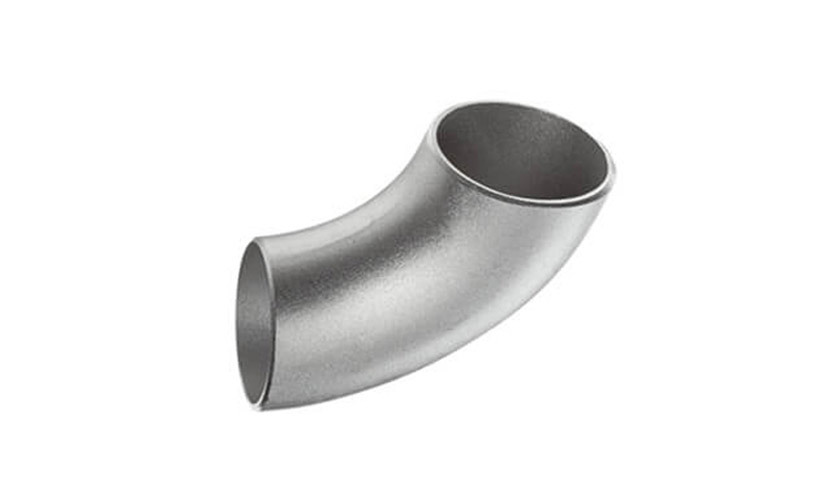

Stainless Steel/Carbon Steel/Alloy Elbow

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc.

Commodity name： Stainless Steel/Carbon Steel/Alloy Elbow

Category:

Pipe Fitting

sales@zhongkuangsteel.com

+86 18865207537

WeChat

Get a Quote

Related Products

Keyword:

Stainless Steel/Carbon Steel/Alloy Elbow

PRODUCT DESCRIPTION

Steel Elbow
Product Name	Steel Elbow
Grade	Stainless Steel: ASTM A403 WP 304/304L,316/316L,ASTM A270 Carbon Steel:ASTM 234 WPB and WPC, ASTM A420 WPL6,MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70
Surface:	Carbon steel:shot blasted,black painting,rust-proof oil,transparent oil,galvanizing,hot galvanizing Alloy steel:Shot blasted,black painting,rust-proof oil,transparent oil,galvanizing,hot galvanizing Stainless steel:pickled,Polish
Application:	Chemical engineering, construction, drainage, petroleum, light and heavy industry, plumbing, fire fighting, electric power, aerospace, shipbuilding and other basic projects
Butt Weld Elbow
Standard:	ASTM A234, MSS SP-75, ASTM A403
Manufacturing Standard	ASME B16.9, DIN2615, JIS B2312, ASME B16.11
Types:	45°elbow, 90°elbow, 180°elbow
Size Range:	1/2”, 1”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16”, 20” to 48”.
Thickness:	SCH 10, SCH 40, SCH 80
Socket Weld Elbow (and Threaded Elbow)
Standard:	ASTM A105, ASTM A182
Manufacturing Standard:	ASME B16.11
Dimensions:	1/2”, 1”, 1/2”, 2” and up to 4”
Pressure Ratings:	2000#, 3000#, 6000#, 9000#

SR (Short Radius) Elbows have a Center-to-Face dimension of 1.0 X diameter. They are typically used in tight areas where clearance is the main issue.

Short Radius (SR) Elbow is also called SR elbow, – means the radius is 1.0 times the pipe diameter

Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.

Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.

Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow

Sizes:

Seamless elbow: 1/2"-24" DN15-DN600

Welding elbow: 6"-72" DN150-DN1800

Wall thickness: Sch5-Sch160 XXS

Long radius elbow is the elbow which the radius of curvature of is 1.5 times the diameter of the pipe; if the radius of curvature is greater than 1.5 times, the long radius elbow will be called the bend. The short radius elbow means that the radius of curvature of the elbow equals the diameter of the pipe, or 1 time the diameter of the pipe in common words. D is used to represent the diameter of the elbow.

Long Radius (LR) Elbow is also called LR elbow – means the radius is 1.5 times the pipe diameter

L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.

L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.

L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.

Sizes:

Seamless elbow: 1/2"-24" DN15-DN600

Welding elbow: 6"-72" DN150-DN1800

Wall thickness: Sch5-Sch160 XXS

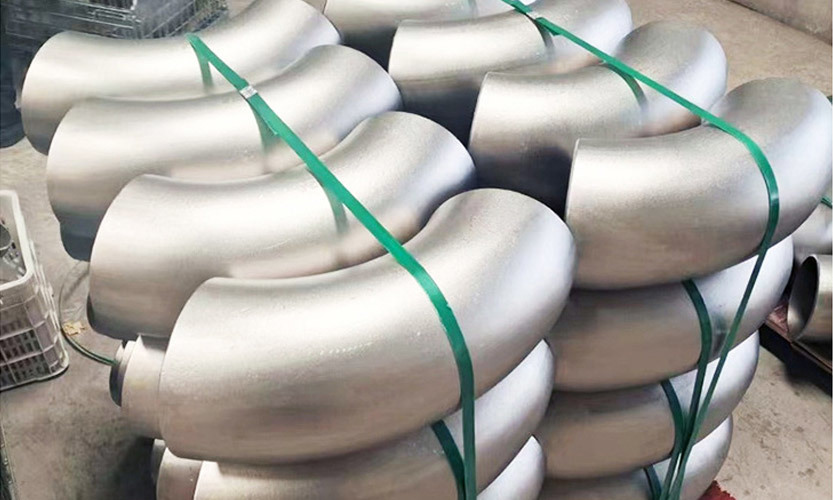

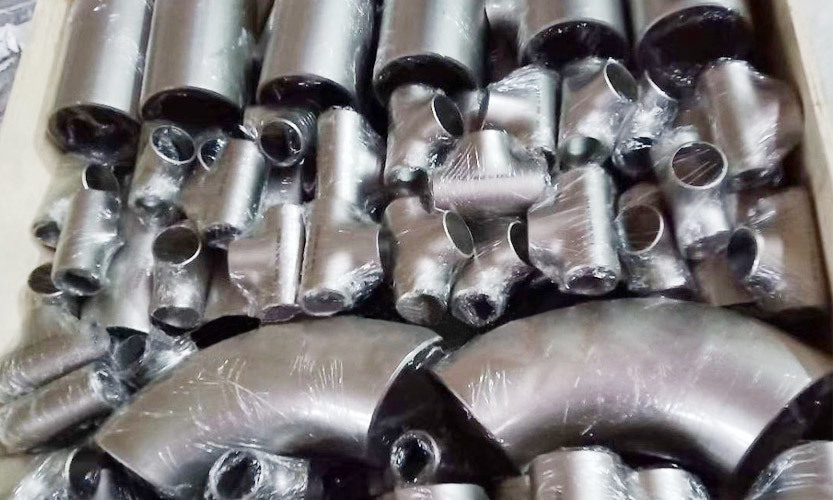

PACKING AND DELIVERY

With the advantages of continuous development, it has developed into a sales platform for many large-scale steel production enterprises in Shandong Province, and its sales areas are all over the provinces, cities and autonomous regions of the country.

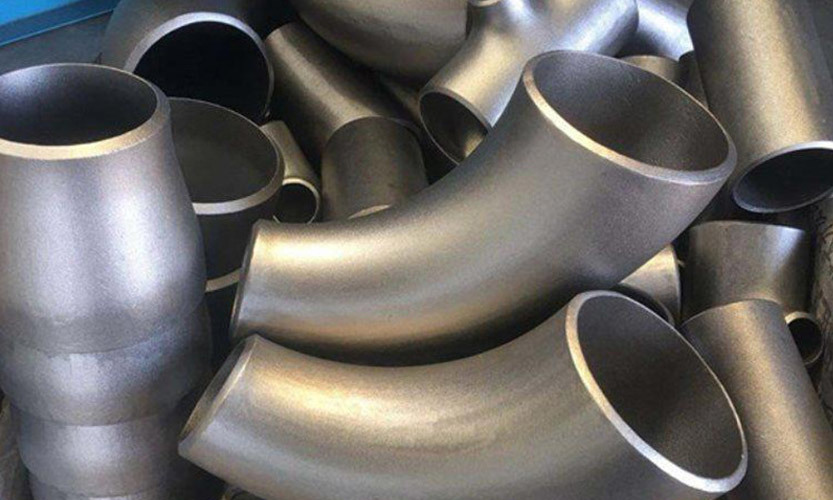

Detection

Strict inspection process to ensure product quality and quantity.

Factory appearance

Zhongkuang Steel (Shandong) Co., Ltd. is located in Shandong, an ancient historical and cultural city, on the coast of Bohai Sea, adjacent to Beijing and Tianjin.

Partner

APPLICATION SCENARIO

FAQ

How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia,Ethiopia and other African countries. Our export experience, we are familiar with different market needs, can help customers to avoid a lot of trouble.

How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-25 workdays

Do you accept customized orders?

A: Yes, you send your drawings, we provide you with excellent designed products. About any further detail, please feel free tocontact us.

How can you guarantee the quantity and how can we trust your company ?

A：After first, our company will pre-production sample before mass production, always final inspection before shipment. We specialise in exporting business for over 15 years as golden supplier, Headquarter locates in Shandong province. Welcome You to investigate in any ways. You also can place trial order for testing the products quality and our service.

Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.

What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
